Drilling Equipment

Hollow Drill

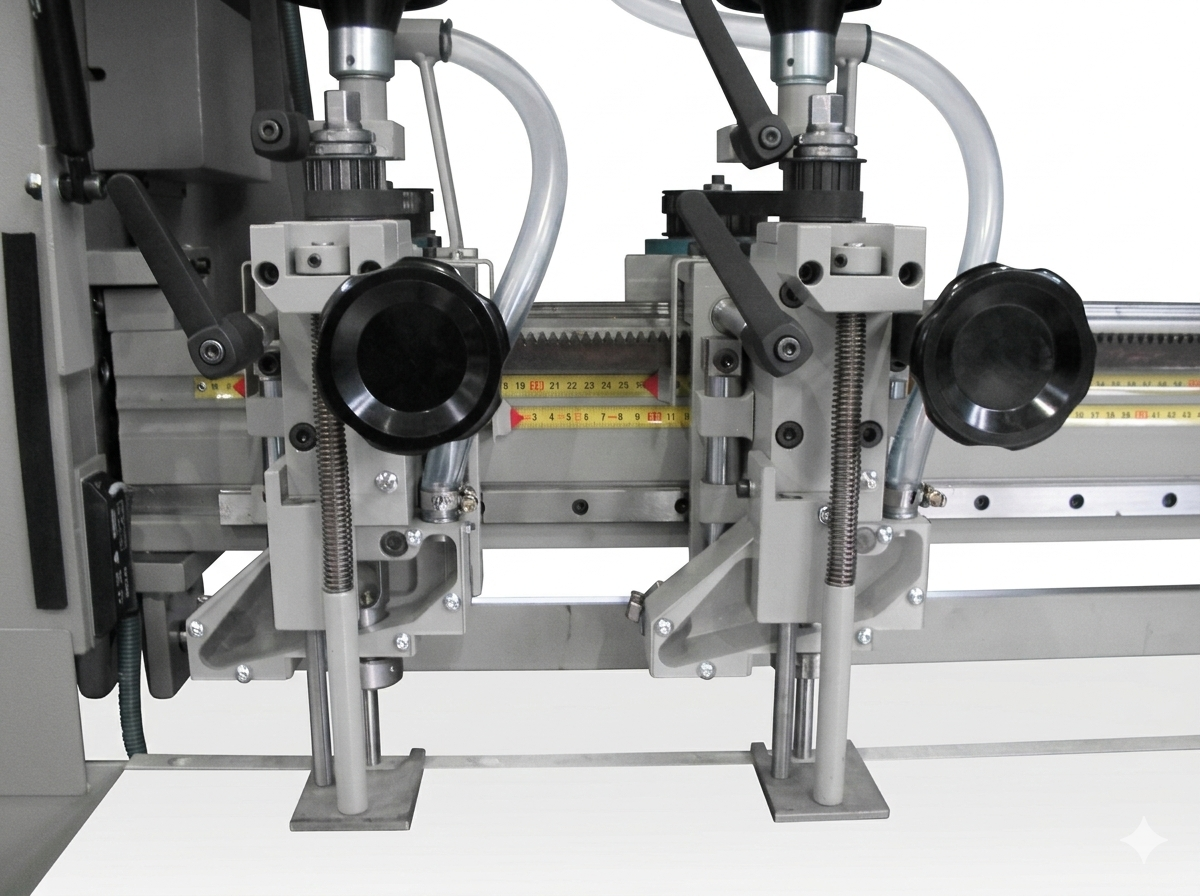

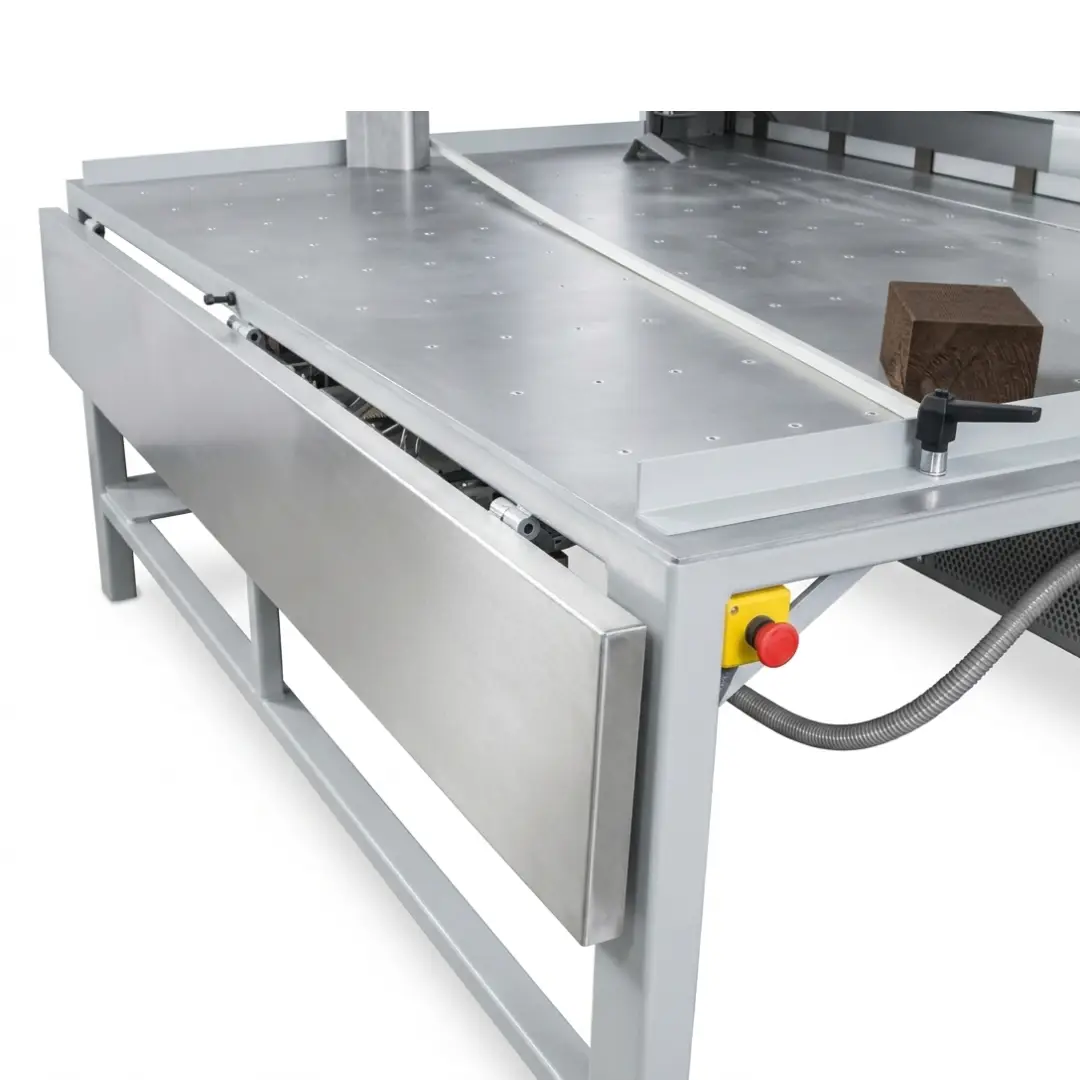

Our drilling machines are an ideal complement for graphic arts companys that needs this type of machinery for certain jobs. A robust and versatile machine that has a work table from 110cms up to the 320cms and from 1 to 6 mobile programmable drilling heads. Cauhé drillings Cauhé are able to punch different types of …

Our clamshell die cutters are designed to die cut many different types of materials:
  • Carton plume up to 6 mm. thick
  • Papier mâche up to 3 mm. thick.
  • Corrugated carton up to 15 mm thick.
  • All type of fine cardboard and paper.
  • Adhesives with half cut: stickers, labels, transfers (Decal), etc.
  • Eva foam (Ethylene-vinyl acetate) .
  • Several types of plastics up to 3mm. thick, needing in some cases warming the knives of the die with a heating plate for a perfect cut and finishing.
Sheets of wood and soft metals, depending on the thickness of the material and the amount of cutting knives. Our machines leaves the factory to work with 23.8mm (0.937”) wide knives, being able to work up to 30mm (1.18”) knives. Upon request we can customize our machines and manufacture it to accept any special size cutting rule. Cauhe clamshell die cutters had been designed for years to fulfill all the regulations relative to the safety demanded by the CEE and optionally customers can request the machien to comply the German Certificate of Security GS. Our machines comply with other countries specific safety regulations like ANSI B65.5 in the USA.   We manufacture a wide range of clamshell die cutter models being able to design any special size upon demand.

MODEL CD1300 CD1600 CD2000 CD2300 CD3200
MAXIMUM DRILLING WIDTH 1100 mm 1400 mm 1800 mm 2100 mm 3000 mm
MINIMUM DRILLING WIDTH 140 mm with two or more drilling heads
MAXIMUM DRILLING HEIGHT 50 mm approx. depending on the drilling head
MAXIMUM DRILLING LENGTH 200 mm
MINIMUM DRILLING LENGTH 10 mm with new drills, 32 mm with sharpened drills
CYCLES PER MINUTE 20-35 depending on the main motor speed
NUMBER OF BITS 1 set of ø4, ø6, ø8, ø10 and ø12 with every drilling head
NET WEIGHT 960 Kg 1100 Kg 1300 Kg 1500 Kg 2000 Kg
POWER 3 kw 5 kw 5 kw 7 kw 9 kw

Related Products

Feeder −

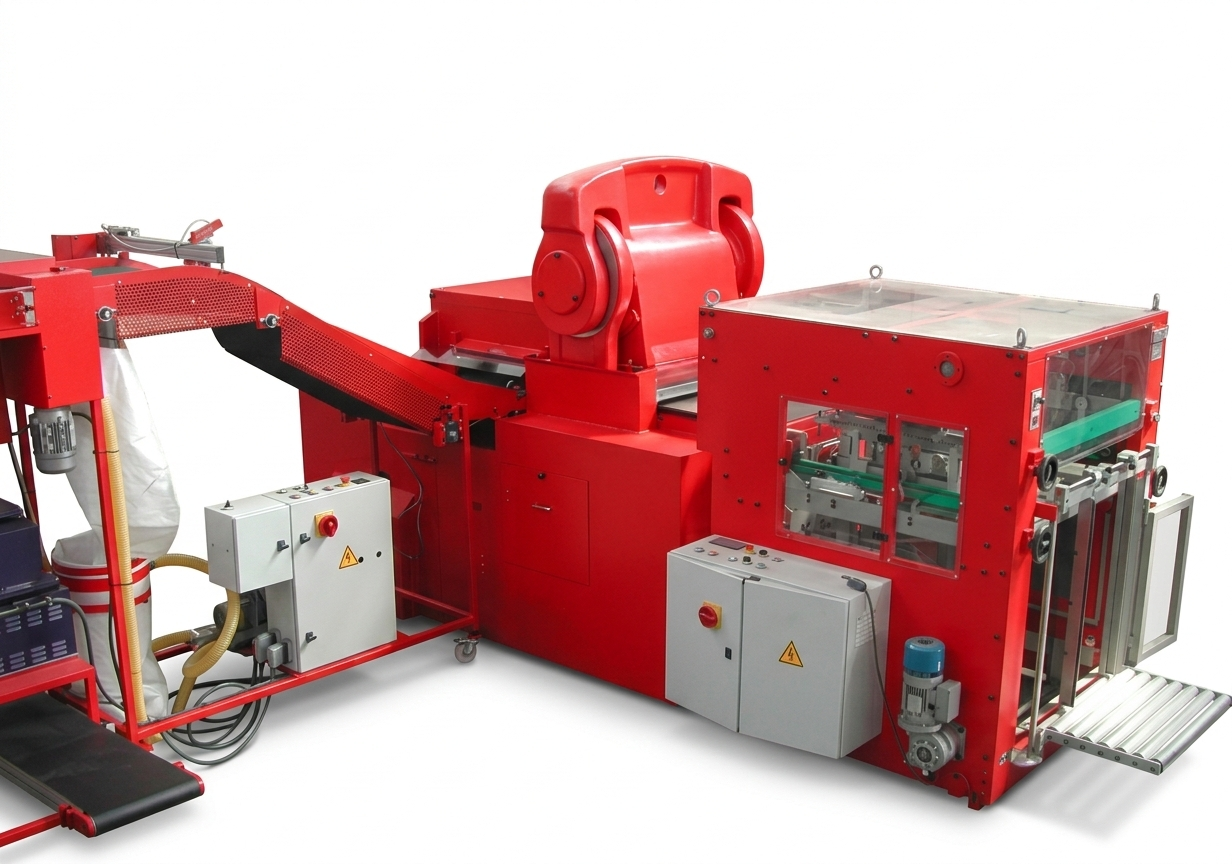

Installing an automatic feeder capable of carrying the puzzles machine at full speed you will obtain best performance working without downtime. This automatic feeder can be manually separated from the main body to prepare the machine or working in manual mode.
The machine can be manufactured to work with double feed, an operator or automatic feeder feeds the front and another does from the back, winning around 40% of production.
