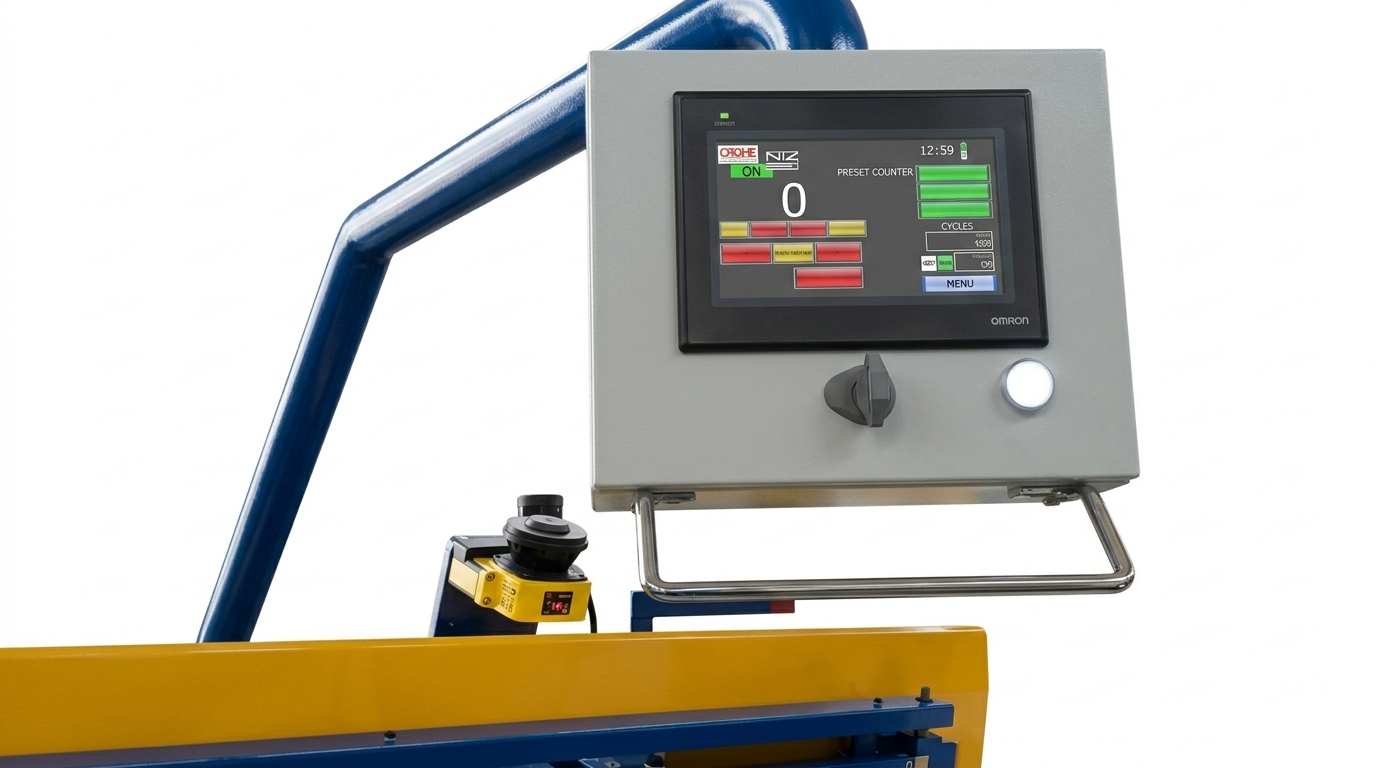

Clamshell die cutters

contact

Cutting Machines

Talleres Casablanca, manufacturer of Cauhe hand fed platen presses, has been leader for years in large format diecutters for graphical arts and packaging industries. During the last 70 years we have designed a wide range of formats, options and customizations for our customers including some patents and special formats requested for our customers. In the last …

Description

Our clamshell die cutters are designed to die cut many different types of materials:

Carton plume up to 6 mm. thick
Papier mâche up to 3 mm. thick.
Corrugated carton up to 15 mm thick.
All type of fine cardboard and paper.
Adhesives with half cut: stickers, labels, transfers (Decal), etc.
Eva foam (Ethylene-vinyl acetate) .
Several types of plastics up to 3mm. thick, needing in some cases warming the knives of the die with a heating plate for a perfect cut and finishing. Sheets of wood and soft metals, depending on the thickness of the material and the amount of cutting knives.

Our machines leaves the factory to work with 23.8mm (0.937”) wide knives, being able to work up to 30mm (1.18”) knives. Upon request we can customize our machines and manufacture it to accept any special size cutting rule. Cauhe clamshell die cutters had been designed for years to fulfill all the regulations relative to the safety demanded by the CEE and optionally customers can request the machien to comply the German Certificate of Security GS. Our machines comply with other countries specific safety regulations like ANSI B65.5 in the USA. We manufacture a wide range of clamshell die cutter models being able to design any special size upon demand.

Measures

MODEL	00	0	0A	I	IA	II	IIA	III	IV	IVA
FORMAT CM.	46×66	55×77	65×86	65×95	72×102	82×112	90×122	100×140	110×160	120×160
PRESSURE TM/DM²	3	3	3	3	2,8	2,5	2,3	2	2	2
NET WEIGHT KG.	2000	3000	3300	3500	4000	4400	5000	6000	8000	10000
MOTOR POWER KW.	2,2	3	3	3	4	4	4	5,5	7,5	11

MODEL	V	VI	VA	VIA	VIH	VIC	VII	VIIF
FORMAT CM.	120×180	120×200	140×180	140×200	140×220	150×200	150×250	160×200
PRESSURE TM/DM²	1,75	1,6	1,75	1,5	1,5	1,5	1,5	1,5
NET WEIGHT KG.	11000	12000	12000	14000	14200	14200	16000	15000
MOTOR POWER KW.	11	15	11	19	19	19	22	22

MODEL	VIIC	VIID	VIIA	VIIG	VIII	IXC	IXA	IX
FORMAT CM.	160×220	160×250	165×250	160×280	160×300	180×220	180×250	180×320
PRESSURE TM/DM²	1,5	1,5	1,5	1,5	1,5	1,5	1,5	1,5
NET WEIGHT KG.	16000	17000	17400	18000	19000	20000	20500	24000
MOTOR POWER KW.	22	22	22	22	22	22	22	22
