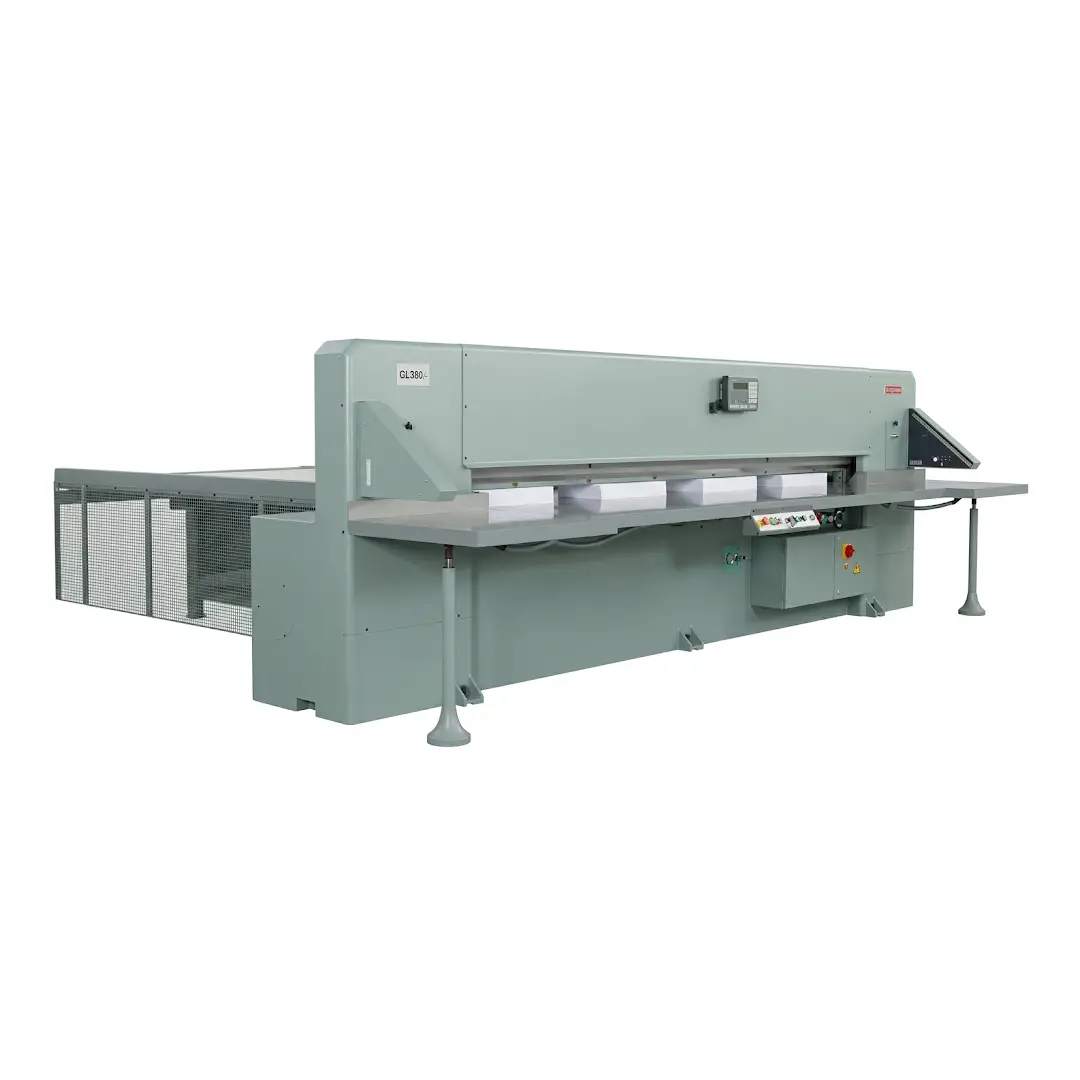

Industrial Guillotines

Cauhé guillotines for paper and carton have been designed to solve all of our clients needs , graphic arts and screen and digital print companys as well as the ones who needs to cut fabrics and textiles. We manufacture 2 main types depending on the weight and height of the material to cut, the GH …

Description

Our paper cutters are manufactured with the following features:

Reenforced steel main body.
Double geared pulling arms for strength and cutting accuracy.
Air cushion tables to facilitate moving of materials.
Dual linear guides to provide exact positioning of the backgauge.
Automatic cutting program to provide the operator a wide variety of posibilities. Special options available.

The Cauhé guillotines have been designed in compliance with all regulations concerning safety required by the EEC and optionally can be ordered with the German GS Safety Certificate. We’ve worked with the company Premier Guillotine Systems (England) to ensure and certify the safety of these machines and also meet the strict criteria of safety regulations England (UK and European Health & Safety Standards). Our machines can cut a variety of materials …

Measures

MODEL	MAX CUT SIZE (mm)	MAX CUT HEIGHT	MIN CUT HEIGHT	ADJUSTABLE CUTTING PRESSURE
GL 170	1700	80mm 3½”	80mm 3½”	Low 880-3300 lbs High 3300-8800 lbs
GL 200	2000	80mm 3½”	80mm 3½”	Low 880-3300 lbs High 3300-8800 lbs
GL 260	2600	80mm 3½”	80mm 3½”	Low 880-3300 lbs High 3300-8800 lbs
GL 320	3200	80mm 3½”	80mm 3½”	Low 880-3300 lbs High 3300-8800 lbs
GL 366	3660	80mm 3½”	80mm 3½”	Low 880-3300 lbs High 3300-8800 lbs
GL 380	3800	80mm 3½”	80mm 3½”	Low 880-3300 lbs High 3300-8800 lbs
GL 420	4200	80mm 3½”	80mm 3½”	Low 880-3300 lbs High 3300-8800 lbs

MODEL	MAX CUT SIZE (mm)	MAX CUT HEIGHT	MIN CUT HEIGHT	ADJUSTABLE CUTTING PRESSURE
GH 170	1700	160mm 6”	140mm 5½”	Low 880–4400 lbs High 4400–18700 lbs
GH 200	2000	160mm 6”	140mm 5½”	Low 880–4400 lbs High 4400–18700 lbs
GH 260	2600	160mm 6”	140mm 5½”	Low 880–4400 lbs High 4400–18700 lbs
GH 320	3200	160mm 6”	140mm 5½”	Low 880–4400 lbs High 4400–18700 lbs
GH 366	3660	160mm 6”	140mm 5½”	Low 880–4400 lbs High 4400–18700 lbs
GH 380	3800	160mm 6”	140mm 5½”	Low 880–4400 lbs High 4400–18700 lbs
GH 420	4200	160mm 6”	140mm 5½”	Low 880–4400 lbs High 4400–18700 lbs
